Config
Failsafe

Failsafe

There are various policies you can use either on Upstream-level or Network-level, to help with intermittent issues and increase general resiliency.

  • timeout: helps prevent requests from hanging indefinitely.
  • retry: is used to recover transient issues.
  • hedge: might run simultaneous requests when one upstream is too slow to respond.
  • circuitBreaker: temporarily removes a down upstream until it recovers.
  • Integrity module helps increase data quality on certain methods such as getLogs or getBlockByNumber.

Config source code: common/config.go (opens in a new tab)

timeout policy

This policy simply sets a timeout for the request, either on Network-level (when requests are sent to eRPC), or on Upstream-level (when requests are sent to a specific upstream).

erpc.yaml
# ...
projects:
  - id: main
    networks:
      - architecture: evm
        evm:
          chainId: 42161
        failsafe:
          #...
          timeout:
            # Network-level timeout applies to the whole lifecycle of the request,
            # this includes retries on network and/or upstream level.
            duration: 30s

    upstreams:
      - id: blastapi-chain-42161
        #...
        failsafe:
          timeout:
            # Upstream-level timeout applies each request sent towards the upstream,
            # e.g. if retry policy is set to 2 retries total time will be 30s for:
            duration: 15s

retry policy

This policies will retry certain retryable failures, either on network-level and/or upstream-level.

erpc.yaml
# ...
projects:
  - id: main
    networks:
      - architecture: evm
        evm:
          chainId: 1
        failsafe:
          # ...
          # On network-level retry policy applies to the incoming request to eRPC,
          # this will be additional to the retry policy set on upstream level.
          retry:
            # Total retries besides the initial request:
            maxAttempts: 3
            # Min delay between retries (most often you don't need to set this for network-level retry):
            delay: 0ms
            # Maximum delay between retries:
            backoffMaxDelay: 10s
            # Multiplier for each retry for exponential backoff:
            backoffFactor: 0.3
            # Random jitter to avoid thundering herd,
            # e.g. add between 0 to 500ms to each retry delay:
            jitter: 500ms

    upstreams:
      - id: blastapi-chain-42161
        # ...
        failsafe:
          # Upstream-level retry policy applies each request sent towards the upstream,
          # this is additional to the retry policy set on network level.
          # For example if network has 2 retries and upstream has 2 retries,
          # total retries will be 4.
          retry:
            maxAttempts: 2
            delay: 1000ms
            backoffMaxDelay: 10s
            backoffFactor: 0.3
            jitter: 500ms

These errors will be retried:

  • 5xx and generally any error that indicate server-side (intermittent) issues.
  • 408 which means request timeout.
  • 429 which means rate limit exceeded, therefore retrying after few moments.
  • EmptyResponse for certain methods (e.g. eth_getLogs) if upstream A returns empty array, it could be due to lag in node syncing, so upstream B will be retried.

These errors will not be retried:

  • 4xx and generally any error that indicate client-side issues (invalid request, invalid parameters, etc).
  • UnsupportedMethods which means upstream does not support certain methods (e.g. eth_traceTransaction)

hedge policy

When a request towards an upstream is slow, the hedge policy will start a new simultaneous request towards the next upstream.

This policy is highly recommended to be set at least on network-level. It will ensure if upstream A is slow, a new request towards upstream B will be started, whichever responds faster will be returned to the client.

erpc.yaml
# ...
projects:
  - id: main
    networks:
      - architecture: evm
        evm:
          chainId: 1
        failsafe:
          # ...
          hedge:
            # Recommended: Use quantile-based hedging, e.g. p99:
            quantile: 0.99
            # This fixed-delay is always added to whatever is the quantile-based delay.
            delay: 0ms
            # Minimum delay to wait before trigger next hedge.
            minDelay: 100ms
            # Maximum delay to wait before trigger next hedge.
            maxDelay: 2s
            # Maximum number of hedges to trigger.
            maxCount: 1

            # Alternative: Simple fixed-delay hedging
            # delay: 500ms
            # maxCount: 1

The hedge policy supports two modes:

  1. Quantile-based hedging (recommended): Uses per-method response time statistics across all upstreams to determine optimal hedge timing. Set quantile: 0.99 to hedge after the 99th percentile response time plus delay. Use minDelay and maxDelay to bound the hedge timing. Using quantile-based means eRPC will observe the response time of a specific method (across all upstreams) for a while and then decides what should be the hedge delay. This approach means highest effective ness for this feature and lowest wasted number of resources.

  2. Fixed-delay hedging: Simply waits for delay duration before hedging. This approach might be less effective and wasteful by trigger too many hedges that will be discarded anyway.

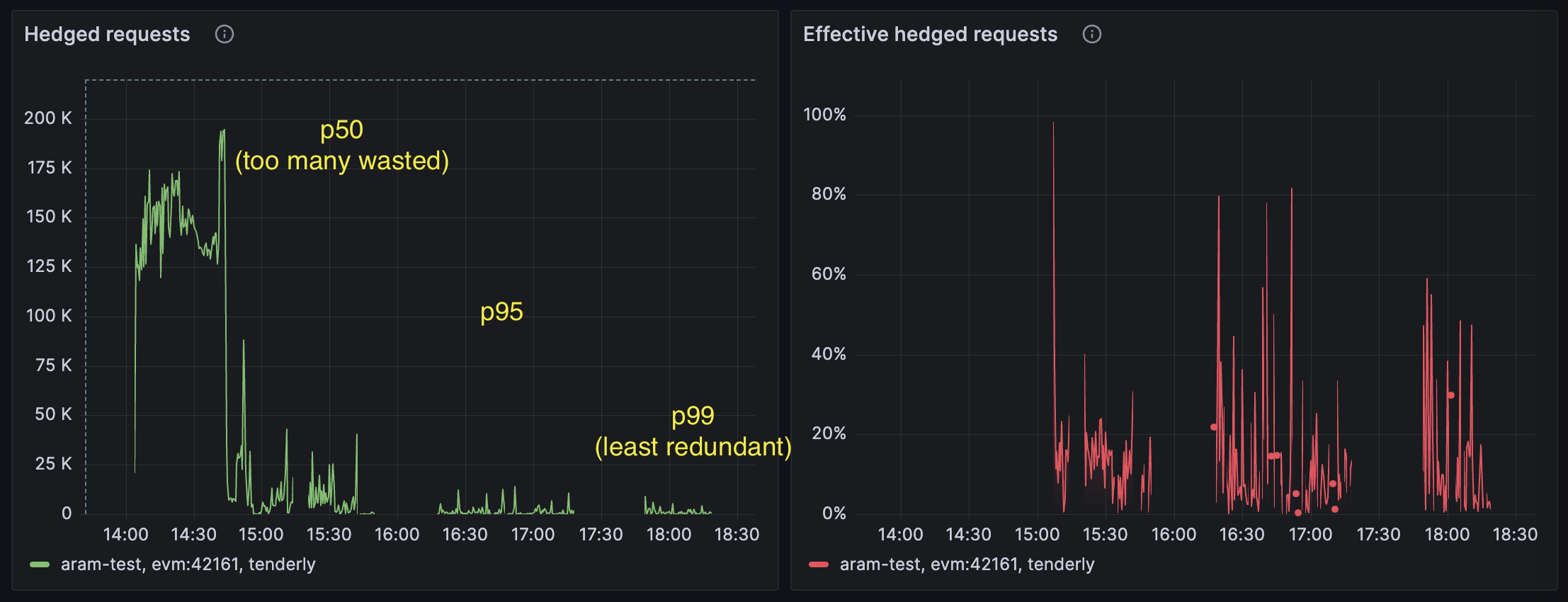

You can monitor hedging effectiveness through the erpc_network_hedged_request_total and erpc_network_hedge_discards_total metrics in the sample Grafana dashboard:

Hedged Requests Effectiveness

To disable hedge policy, set it to null:

erpc.yaml
failsafe:
  hedge: ~

circuitBreaker policy

When upstreams are constantly failing, the circuitBreaker policy will temporarily remove them from list of available upstreams.

This policy is recommended to be set on upstream-level. This will make sure temporarily broken upstreams are not used, and will give them time to recover.

erpc.yaml
# ...
projects:
  - id: main
    upstreams:
      - id: blastapi-chain-42161
        # ...
        failsafe:
          # ...
          circuitBreaker:
            # These two variables indicate how many failures and capacity to tolerate before opening the circuit.
            # e.g. if 80% (160) of last 200 requests have failed, circuit breaker will be opened:
            failureThresholdCount: 160
            failureThresholdCapacity: 200
            # How long to wait before trying to re-enable the upstream after circuit breaker was opened.
            # e.g. after 60s give the upstream another chance:
            halfOpenAfter: 60s
            # These two variables indicate how many successes are required in half-open state before closing the circuit,
            # and putting the upstream back in available upstreams.
            # e.g. after 8 requests have succeeded out of last 10 requests, circuit breaker will be closed:
            successThresholdCount: 8
            successThresholdCapacity: 10

To disable circuit breaker policy, set it to null:

erpc.yaml
# ...
projects:
  - id: main
    upstreams:
      - id: blastapi-chain-42161
        failsafe:
          circuitBreaker: ~
  • Circuit breaker "open" means that upstream is temporarily removed from the list of available upstreams.
  • Circuit breaker "half-open" means that upstream is tentatively put back into the list of available upstreams, but with reduced capacity (e.g. only 10 requests are allowed).
  • Circuit breaker "closed" means that upstream is fully recovered and put back into the list of available upstreams.

Roadmap

On some doc pages we like to share our ideas for related future implementations, feel free to open a PR if you're up for a challenge:


  • Allow defining failsafe policies on a per-method basis (e.g. different behavior for eth_getLogs vs other methods).
